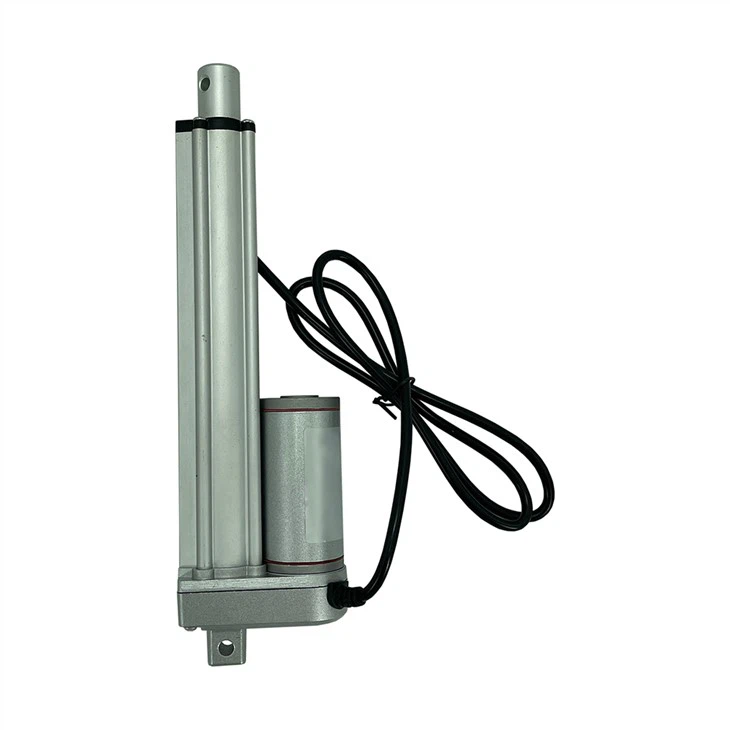

150mm Stroke Electric Push Rod
An electric drive device that converts the rotary motion of the motor into the linear reciprocating motion of the push rod.
Description:
An electric drive device that converts the rotary motion of the motor into the linear reciprocating motion of the push rod.
Features:
- The optimized structure design can ensure excellent thrust and pushing speed while reducing running noise.
- Small size, high precision and low operating power.
- It can be self-locking, reducing power loss and motor load, and prolonging service life.
- A variety of specifications and models are available to meet the needs of different occasions.
Finish Treatment:
Customizable stickers and surface colors
Technical Parameters:
|
Item |
Unit |
Parameter |
Remarks |
|
Stroke（S） |
mm |
15~1500 |
Optional |
|
Installation hole spacing |
mm |
S+105 |
S≥300, Installation hole spacing S+165 |
|
Diameter of expansion pipe |
mm |
20-0.1 |
|
|
Diameter of upper and lower holes |
mm |
≥Ø6.4，≤Ø10.5 |
Optional |
|
No load noise |
dB |
≤50 |
|
|
Full load noise |
dB |
≤65 |
|
|
Voltage |
DC |
24V，12V |
|
|
No load current |
A |
≤0.6 |
|
|
Number of outgoing lines |
芯 |
2，4 |
If 4-core wire is used, the telescopic rod can act in sections |
|
Overall dimension of gearbox |
mm |
76*40 |
|
|
Load and Speed |
|||
|
Speed（mm/s） |
Thrust（N） |
Self-lock Force（N） |
|
|
DC24V |
DC12V |
||
|
7 |
1300 |
1100 |
1500 |
|
12 |
1100 |
900 |
1300 |
|
24 |
600 |
450 |
700 |
|
48 |
300 |
200 |
350 |
|
60 |
150 |
100 |
180 |
Our Services:
- OEM service available.
- Design for customer.
- Develop according to customer special requirement.
- Improve products according to customer needs.
FAQ:
-
Q: Can I customize the label?
A: Yes
-
Q: Can I customize the surface color?
A: Yes
